A portable, battery-powered mounting and power platform designed to rapidly deploy cameras, communication equipment, sensors, environmental devices, surveying instruments, signs and radar in the field.
The LI-TC-300 isn't a light — it's a portable, battery-powered mounting and power platform, built to rapidly deploy cameras, communication equipment, sensors, environmental devices, surveying instruments, signs, and radar wherever those devices need power away from a fixed supply. It shares its tripod-mast chassis with the LI-300, adapted here to carry a universal mounting platform instead of a lamp head.
A regulated 12V DC output at up to 3.4A, 40W maximum — not a light output, but the power it delivers to whatever's mounted on it.
Runs on LI-24-100 series battery packs (input DC-24V), battery only. A dual battery pack design allows hot-swapping a depleted pack for a charged one without interrupting connected equipment. Dual rainproof USB outputs (5V/3A) are also available, and the platform carries multiple power interfaces compatible with IR and PTZ cameras.
Typical working hours of >40 to 150 hours on two LI-24-100 packs — the wide range reflects how much actual load is drawn by whatever's connected.
Battery packs charge via the included LI-MC-2 dual bay charger.

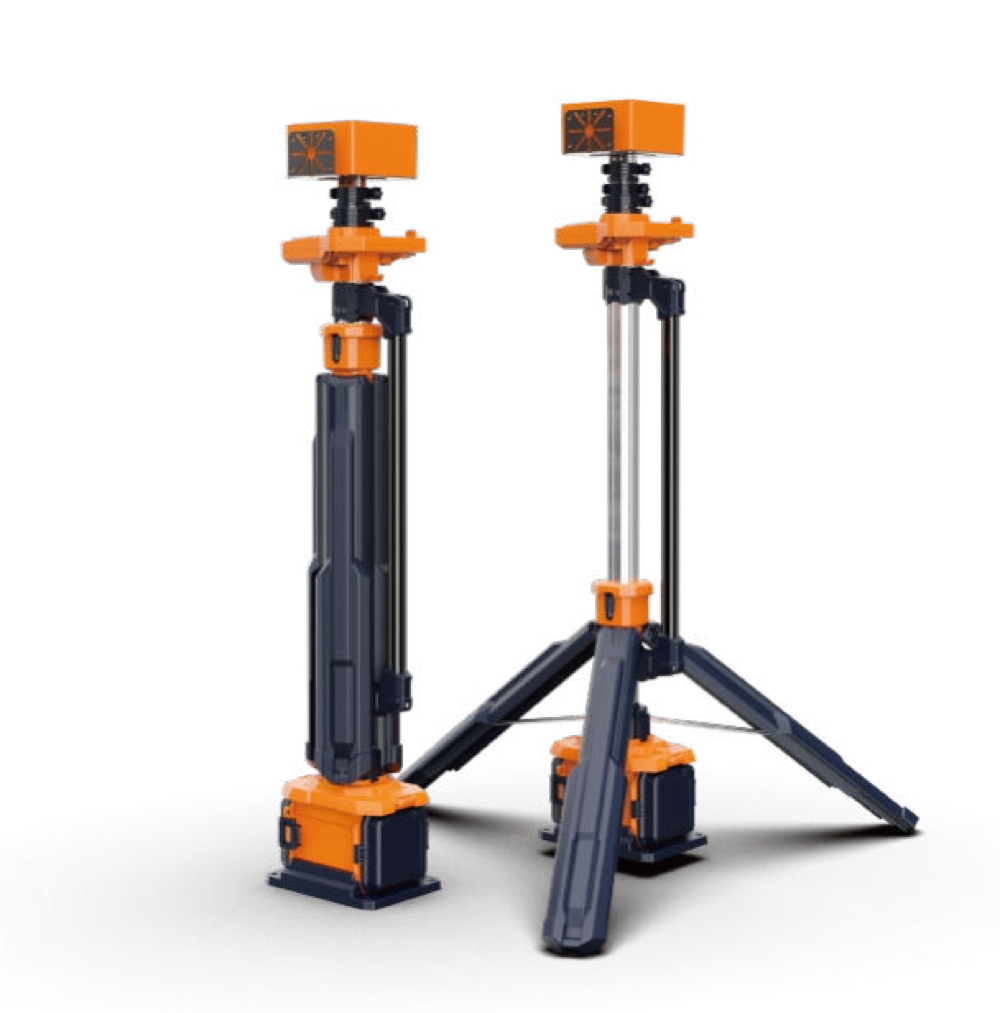

Extends from 1.3m to 3.1m, secured at any height with a buckle clamp — one-click release/lock tripod legs get it ready to power up in 10 seconds. A universal mounting platform supports left, right, or top installation, and a built-in rainproof box holds control and signal devices. Maximum mounting load is 5kg.
Level 8 wind resistance (61.5–74.5 km/h) on the tripod base — the same rated chassis as the LI-300. Operating temperature -10°C to 50°C. An IP ingress rating isn't published for this model on its current spec sheet — if dust/water ingress protection is a hard requirement for your site, contact us to confirm before specifying.
8.4kg (fitting only, excluding battery), single-person deployable with the same rapid, tool-free setup as the LI-300.
| Specification | LI-TC-300 |
|---|---|
| Height (Retracted – Extended) | 1.3 m – 3.1 m |
| Weight (fitting only, excl. battery) | 8.4 kg |
| Power Supply | LI-24-100 series battery pack |
| Input | DC-24V |
| Output Voltage / Current | 12V DC / ≤3.4A |
| Maximum Output Power | 40W |
| Wind Resistance | Level 8 (61.5–74.5 km/h) |
| Typical Working Hours (2x LI-24-100) | >40h – 150h |
| USB Output | 5V / 3A |
| Maximum Mounting Load | 5 kg |
| Operating Temperature | -10°C to 50°C |
| Compatible Equipment | IR/PTZ cameras, comms equipment, environmental sensors, surveying instruments, signs, speed radar |
| Standard Kit | 1× LI-TC-300, 2× LI-24-100 Battery Pack, 1× LI-MC-2 Dual Bay Charger |
| Warranty | 1 year manufacturer warranty; extended coverage available at purchase |
Source: Litenza LI-TC-300 product specification sheet. Specifications subject to change without notice. Want the full PDF datasheet? Request It and we'll email it to you.
| Dimension | Value |
|---|---|
| Extended Height | 3110 mm |
| Retracted Height | 1305 – 1325 mm |
| Retracted Width | 261 mm |
| Retracted Depth | 200 mm |

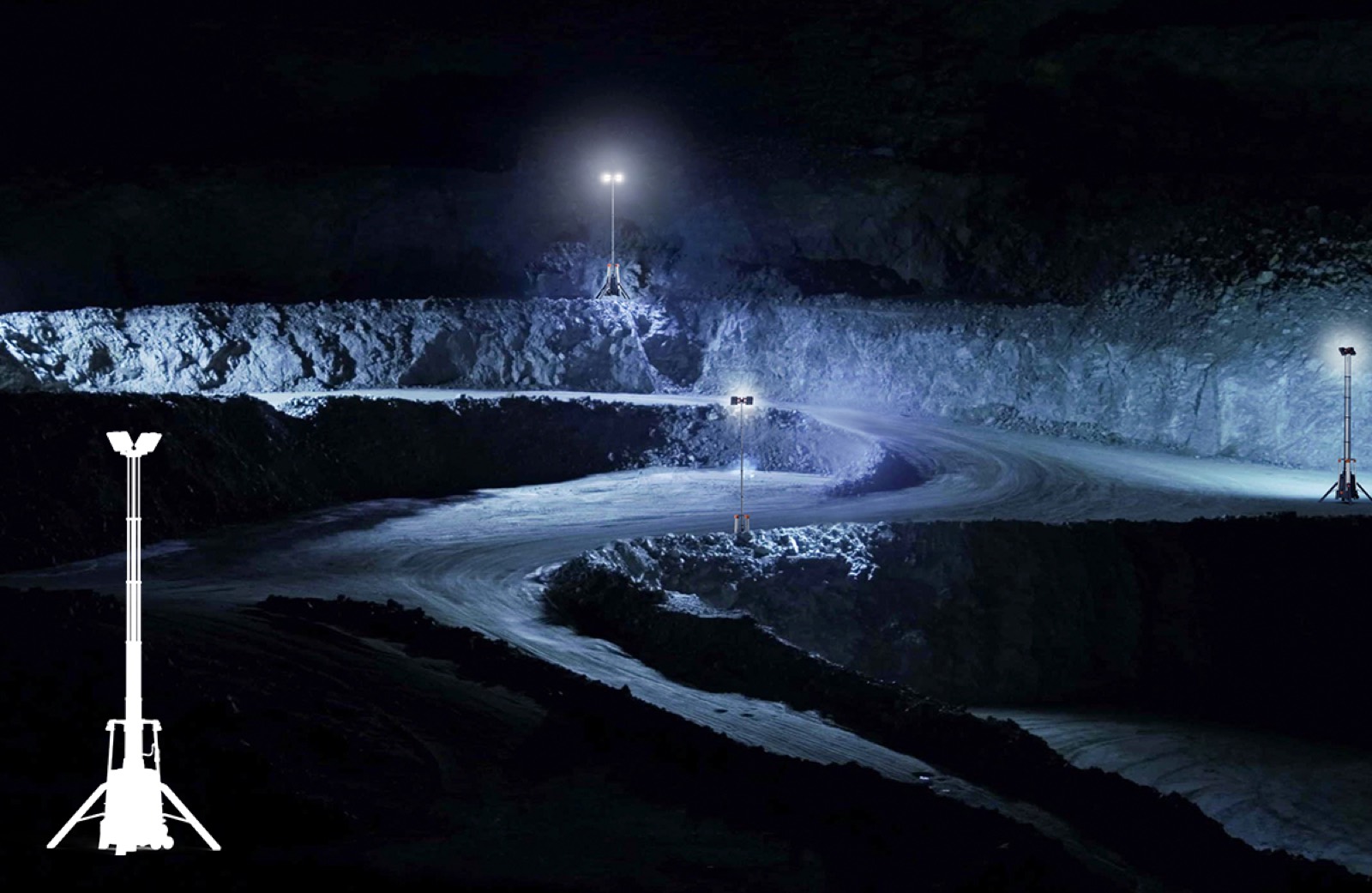

The LI-TC-300 is most useful anywhere equipment needs power away from a fixed supply.
Read our Portable Power Platforms guide for more on how it works in the field.
| Factor | LI-TC-300 | Mains Cable / Generator Alternative |
|---|---|---|
| Performance | Regulated 12V DC, up to 3.4A (40W max) | Depends on cable run/generator, often unregulated |
| Power source | Lithium battery pack | Trenched mains cable, or a separate generator |
| Fuel requirement | None | None (mains); diesel/petrol if generator-fed |
| Noise | Silent | Silent (mains); engine noise if generator-fed |
| Emissions | None | None (mains); exhaust if generator-fed |
| Deployment | Single person, 10 seconds, no trenching | Cable trenching or generator siting and connection |
| Maintenance | No wiring or engine to maintain | Cable/wiring upkeep, or generator servicing |
| Operating cost | Battery/electricity only | Trenching/installation cost, or ongoing fuel and generator maintenance |
Comparison reflects general characteristics of running mains cable or a site generator to power field equipment, not a specific competitor product.
Battery operation means no exhaust emissions and no cable-trenching hazard across an active site. It runs silently, and the dual battery hot-swap design avoids a power interruption — and the equipment restart that would follow — during a pack change. Level 8 wind resistance on the tripod base keeps mounted equipment stable in exposed conditions.
Cameras, environmental sensors, surveying instruments, comms equipment, signs, and speed radar — anything within its 5kg mounting load.
A regulated 12V DC output at up to 3.4A, 40W maximum.
10 seconds, with a 1.3–3.1m telescopic mast.
Yes — its dual battery design lets a depleted pack be swapped for a charged one without interrupting connected equipment.
| Model | Best For | Max Output | Weight | Power |
|---|---|---|---|---|
| LI-300 | Compact sites, frequent relocation | 14,000 lm | 8.2 kg | Battery / AC |
| LI-500 | Maximum output, wide-area coverage | 65,000 lm (AC) | 50kg-class | Battery / AC |
| LI-TP-200 | Precision aiming, confined spaces | 12,000 lm | 4.4 kg | Battery |
| LI-TC-300 (this page) | Powering cameras, sensors & field gear | 40W output | 8.4 kg | Battery |
| LI-S3 | Handheld work, close-range & hazard warning | 500 lm | 190 g | Battery |
| LI-2 | Hands-free work, both hands needed | 320 lm | 80 g | Battery |
